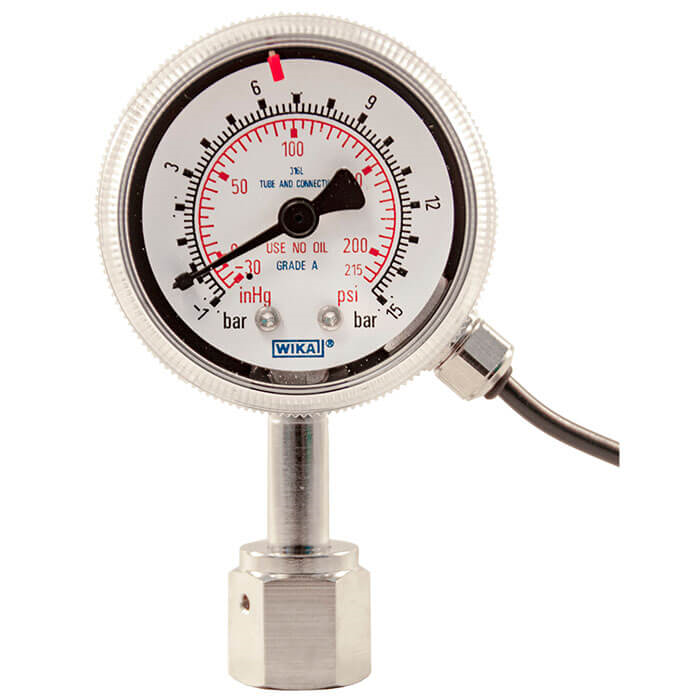

For UHP (ultra high purity) applications
Nominal size1 ½", 2"
Accuracy classNS 1 ½": Grade B per ASME B40.1NS 2": Grade A per ASME B40.1
Scale ranges0 ... 1 to 0 ... 400 bar (0 ... 15 to 0 ... 6,000 psi)or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitationSteady: 3/4 x full scale valueFluctuating: 2/3 x full scale valueShort time: Full scale value
Permissible temperatureAmbient: -40 ... +60 °CMedium: +100 °C maximum
Temperature effectWhen the temperature of the measuring system deviatesfrom the reference temperature (+20 °C):max. ±0.4 %/10 K of full scale value
Ingress protectionIP 54 per EN 60529 / lEC 529
Models 432.10, 432.15
UHP, nominal sizes 1" and 1.3"
Models WU-20, WU-25, WU-26
For applications in hazardous areas, Ex nA ic
Model 230.15-851
UHP, stainless steel version, with reed contact
Model GCS-1
Models WUC-10, WUC-15, WUC-16
Model 130.15
For HP (high purity) applications
Model 230.15 with 1 contact model 851.3
