Aseptic connections
Description
Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In diaphragm seal systems, the diaphragm of the diaphragm seal effects the separation of the instrument and the medium.
The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the diaphragm seal system.
For the implementation of demanding customer applications, there is a wide variety of designs, materials and system fill fluids available.
For further technical information on diaphragm seals and diaphragm seal systems see IN 00.06 "Application, operating principle, designs".

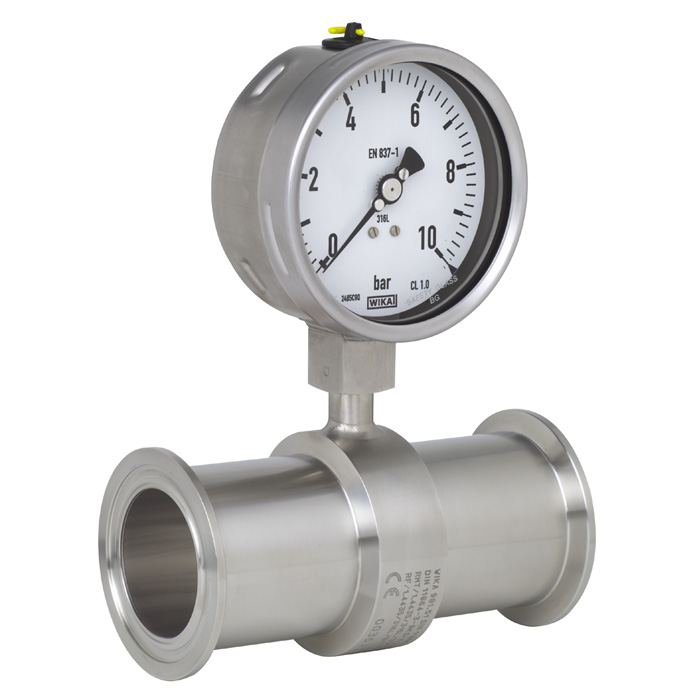

Due to their hygienic process connection, the model 981.51 diaphragm seals is ideally suited for food production, pharmaceutical and biotechnology applications. The diaphragm seals can withstand the cleaning vapour temperatures occurring in the SIP processes and thus ensure a sterile connection between the medium to be measured and the diaphragm seal.
Mounting of the diaphragm seal to the measuring instrument may be made via a direct connection, for high temperatures via a cooling element or via a flexible capillary.
The availability of the diaphragm seals for common pipe standards and nominal widths simplifies integration into already existing pipe cross-sections.
Model 910.16
Model 910.21
For mounting to zone 0 (EPL Ga)
Model 990.51
Aseptic connection per DIN 11864
Models 981.22, 981.52, 981.53
With clamp connection (TRI-CLAMP®)
Model 990.50
For sanitary applications, NEUMO BioConnect®
Model 981.50
NEUMO BioConnect®
Models 981.18, 981.19, 981.20, 981.21
With union nut (milk thread fitting)
With pressure gauge
Diaphragm seal systems for safety applications - Why pressure sensors with in-line diaphragm seals are a good choice for hygienic applications (PDF)
Measuring instruments with connections per DIN 11864
