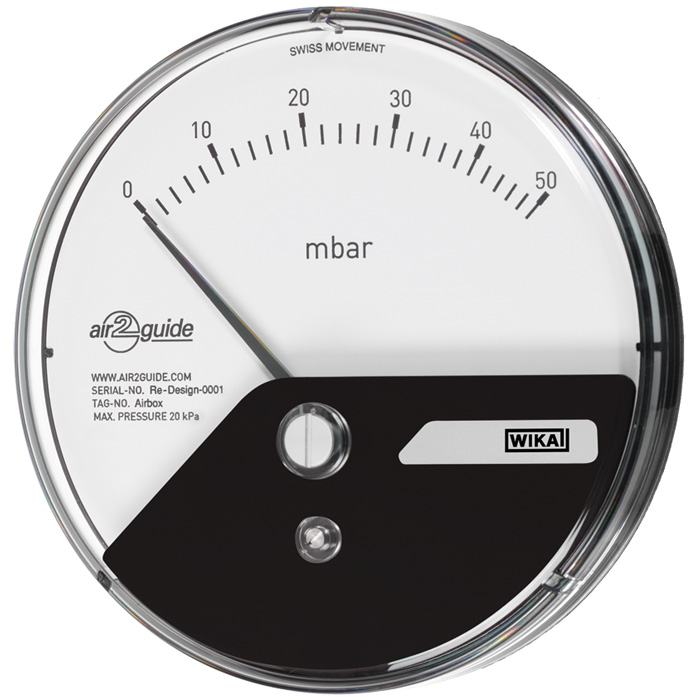

Model A2G-05

Differential pressure gauge

Eco version, For ventilation and air-conditioning, NS 110

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • For monitoring the differential pressure of air and other non-inflammable and non-aggressive gases
  • Differential pressure monitoring in filters and clean rooms

Special features

  • Simple and quick mounting
  • Integrated sealing element for direct installation in an air duct
  • Fixed back mount process connection in angular form for pressure measurement hoses of diameter 4 … 6 mm
  • Maintenance-free
  • Maximum operating pressure 20 kPa


The model A2G-05 Eco differential pressure gauge is used for monitoring the differential pressure in ventilation and air-conditioning applications. The measuring ranges cover from 0 … 50 Pa to 0 … 12,500 Pa. Plus/minus ranges can be fulfilled from -25 … +25 Pa to -1,500 … +1,500 Pa.

The separated construction of the pressure measurement chamber and display area ensures that impurities from the process air do not settle on the back of the window. As a result of the 2-part construction (measuring element and
mounting ring), the A2G-05 can be exceptionally easily and quickly mounted.

The differential pressure gauge is available with ingress protection IP54 and IP65.

In a special version, the A2G-05 is available as a silicone-free product.
