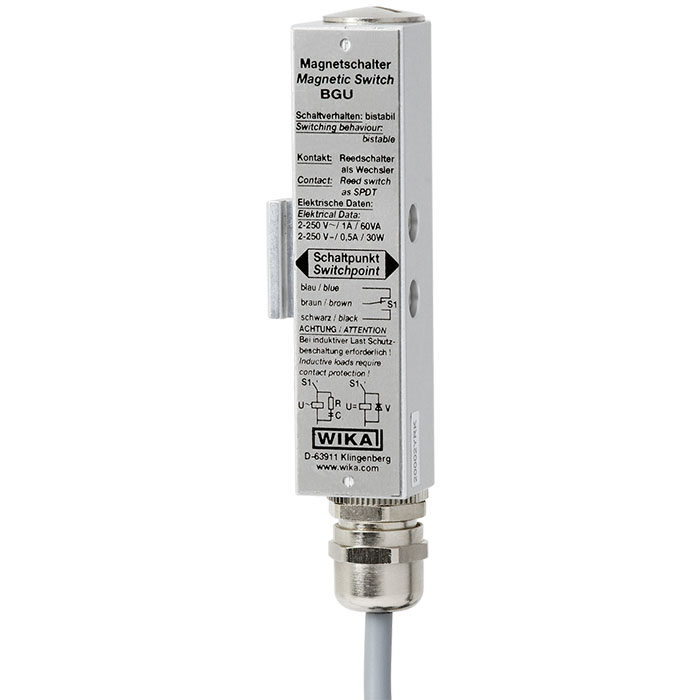

Model BGU

Magnetic switch

For bypass level indicators

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Magnetic switches for detecting the limits of filling levels in bypass level indicators
  • Chemical and petrochemical industries, oil and natural gas extraction (on- and offshore)
  • Shipbuilding, machine building
  • Power generating equipment, power plants
  • Pharmaceutical, food, water treatment, environmental engineering industries

Special features

  • Proper functioning, even under extreme environmental influences, e.g. dirt, humidity, gases, dust, chips, etc.
  • The magnetic switches consist of only one component and are therefore very safe to operate.
  • Switching function in voltage-free state
  • Medium temperatures from -196 ... +380 °C
  • Versions with reed contact, proximity switch, micro switch or rotation magnet


The model BGU magnetic switches serve to detect the limits of filling levels in bypass level indicators. They generate a binary signal which can be fed to down-stream signalling or control equipment. Bistable versions enable the storage of signals.

The magnetic switches are mounted directly to the bypass level indicator with a tightening strap or to the magnetic roller display with sliding blocks.

The magnetic switches are available with different approvals and with SIL 1.

For selecting the optimum switch (switch model, approval, switching option, cable length, cable material) we offer application-related technical advice.

Reed switch, BGU

Reed switch, BGU

  • Reed switch, BGUHigh-temperature reed switch, BGU-AHT
