Model EZE09

Analogue cable amplifier

For strain gauge resistance thermometry bridges

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Machine building and plant construction
  • Manufacturing automation
  • Industrial weighing technology

Special features

  • High accuracy
  • Input signal: strain gauge resistance thermometry bridge; output signal 0/4 ... 20 mA or DC 0 ... 10 V
  • Cable length between amplifier and read-out unit: up to 100 m are possible
  • Compact design
  • Ingress protection IP67

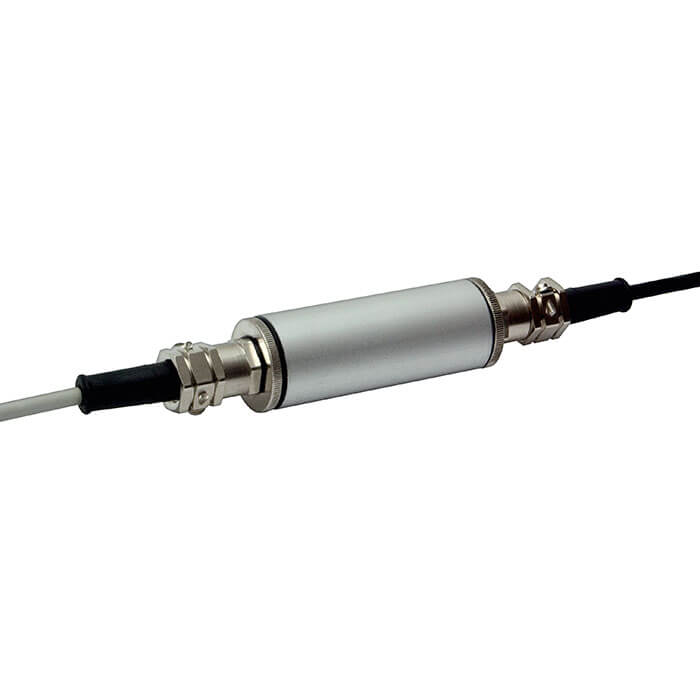

The model EZE09 analogue cable amplifier is used to adapt the output signal of strain gauge force transducers to indicators or to a downstream controller.

Through the practical form of its case, it can be fastened almost anywhere with a simple screw clamp. The case corresponds to IP67 ingress protection and is thus suitable for use in harsh environments.

All strain gauge force transducers that can be operated with a DC voltage can be connected. With the combination of the cable amplifier with a force transducer, this measuring unit can be adjusted in line with customer wishes.

The supply voltage of DC 12 ... 28 V ensures a direct connection to a PLC. These usually feature a 24-volt supply voltage. The analogue output enables the direct signal processing in the PLC.

Analogue cable amplifier
  • Analogue cable amplifier
