Model F1226

Compression force transducer

Miniature design up to 225 kN

Selected documents
Sales contact Questions? Find a contact in your vicinity.

Applications

  • Plant construction and equipment manufacturing
  • Measuring and control systems
  • Precision engineering
  • Fully-automated machining centres
  • Theatre and stage construction

Special features

  • Measuring ranges 0 ... 25 N to 0 ... 225 kN [0 ... 5 lbs to 0 ... 50,000 lbs]
  • Relative linearity error 0.25 % Fnom
  • Simple force introduction
  • Compact design, low installation height
  • Ingress protection IP67

Description

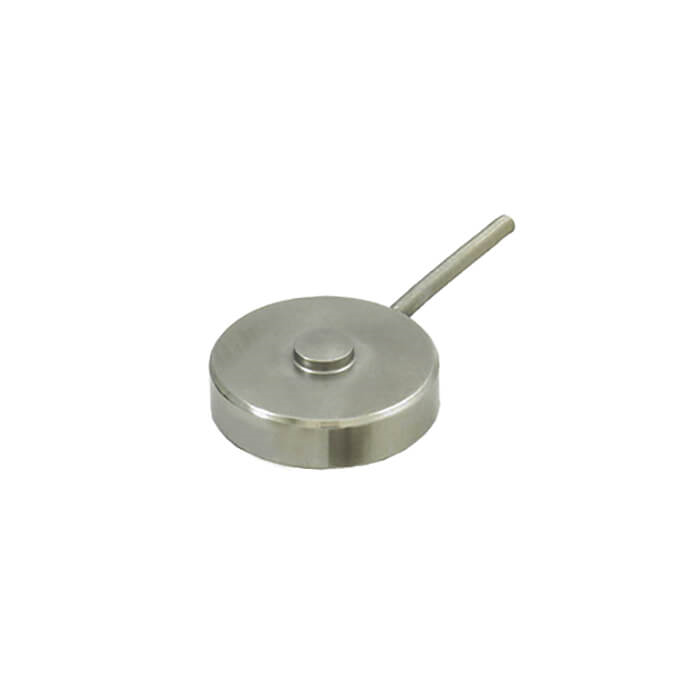

The model F1226 compression force transducer in miniature design is especially notable for its small diameter and installation height for corresponding rated loads. Due to its compact dimensions and solid construction, this force transducer, manufactured from stainless steel, can be used in the widest range of industrial areas.

This force transducer is easy to handle and enables a relatively uncomplicated installation. Its small dimensions predestine it particularly for use in very narrow installation spaces in which compression forces must be measured.

Note
To avoid overloading, it is advantageous to connect the force transducer electrically during assembly and to monitor the measured value. The measuring force must be introduced through the centre and free of transverse force. When assembling the force transducer, care should be taken that the support surface is flat.
