To 500 kg
Bending beams are suitable for static and dynamic measuring requirements. They serve for determining forces in diverse fields of application.
They are used in industrial weighing and laboratory technology, and also in the process industry.

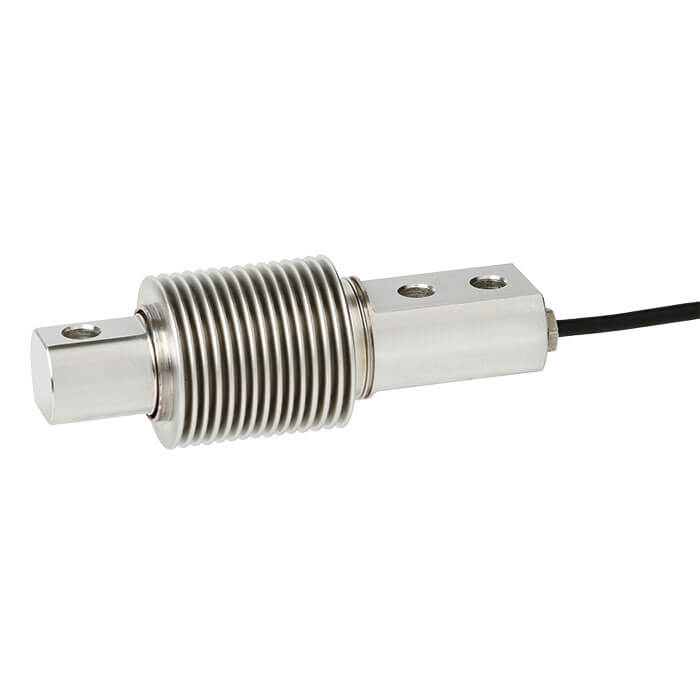

The F3203 bending beams are made of stainless steel, whose properties are particularly suitable for the fields of area in scales and process technology. An mV/V signal is provided as the output signal.
The F3203 bending beams are certified by the International Organisation of Legal Metrology (OIML) with 3,000 intervals R60 Class C.
To avoid overloading, the bending beam should be electrically connected and the measured value monitored during assembly. The measuring force must be introduced through the centre and free of transverse force.
The bending beams must be mounted on a flat surface.
Model F3833
Up to 500 kg
Models F3301, F33C1, F33S1
With thin-film technology up to 100 kN
