Model MFT


For pressure and temperature measurement

Selected documents
Sales contact Questions? Find a contact in your vicinity.

Applications of the thermomanometer

  • Heating facilities
  • Combi-boiler with hot water and heating

Special Features of the thermomanometer

  • Combined indication for pressure and temperature
  • With capillaries
  • Scale range 0 … 4 bar, 0 ... 120 °C
  • Reliable and cost-effective

Description of the thermomanometer

Nominal size in mm
40, 42, 52

    Working ranges
  • Pressure:
    Steady: 3/4 x full scale value
    Short time: Full scale value
  • Temperature:
    Full scale value

Measuring elements
Bourdon tube, Cu-alloy

    Cu-alloy, back mount (BM)
  • Pressure: Male thread G 1/4 B (rotatable) with capillary
  • Temperature: Capillary, with sensor D6, plastic covered

Plastic, black, with front flange and lateral snap-fit provisions for panel mounting

Movement (pressure indication)

Plastic, white, black lettering

Plastic, black

Plastic, crystal-clear

The following options are available for the thermomanometer:

  • Other scale ranges
  • Capillary lengths (pressure, temperature), max. 5 m
  • Capillary (pressure) plastic covered
  • Other temperature sensor dimensions
  • Other pressure connections
  • Special scales

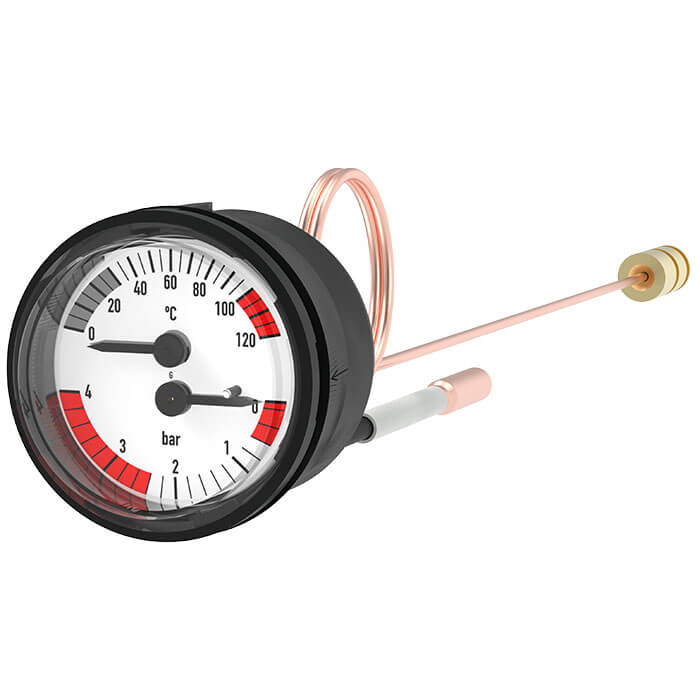

Thermomanometer model MFT.30.040

Thermomanometer model MFT.30.040

  • Thermomanometer model MFT.30.040
