For applications in areas with standard signals

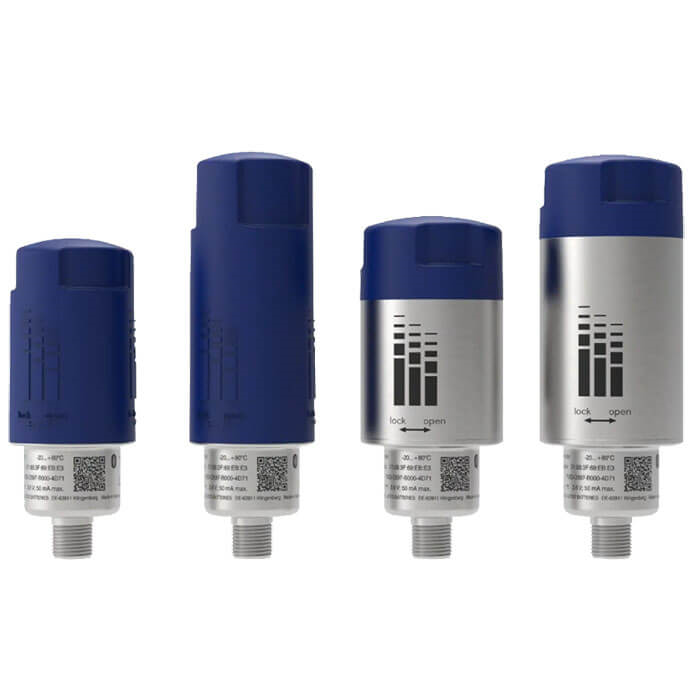

The model NETRIS®1 is a WIKA radio unit to which standard sensors can be connected in order to bring the measured data wirelessly to a cloud for big-data analysis. It uses the licence-free LoRaWAN® and Bluetooth® radio standards and is used, for example, on mobile equipment and remote measuring points. Thanks to intelligent measurement and transmission control and a replaceable battery, the radio unit can be operated over a long battery life.
The radio unit receives the data via connected measuring instruments with a standard signal of 0 ... 10 V or 4 ... 20 mA or an RTD in accordance with the Pt100/Pt1000 standard in 2- or 3-wire technology. The fully encapsulated instrument with IP65 ingress protection transmits the received data continuously to a cloud via configurable data packets with LoRaWAN® or Bluetooth®.
Wireless transmission via LoRaWAN® (“Long Range Wide Area Network”) is based on LPWAN technology (“Low Power
Wide Area Network”) to enable high transmission ranges and long battery life. A version made of stainless steel is available for applications with harsh ambient conditions.
The instrument can be easily configured via the cloud and the LoRaWAN network or via the Bluetooth® interface.
Model PEW-1000
For general industrial applications
Model NETRIS2
For applications in hazardous areas
Model NETRIS3
Models PGW23.100, PGW26.100
Safety version, NS 100 [4"]
