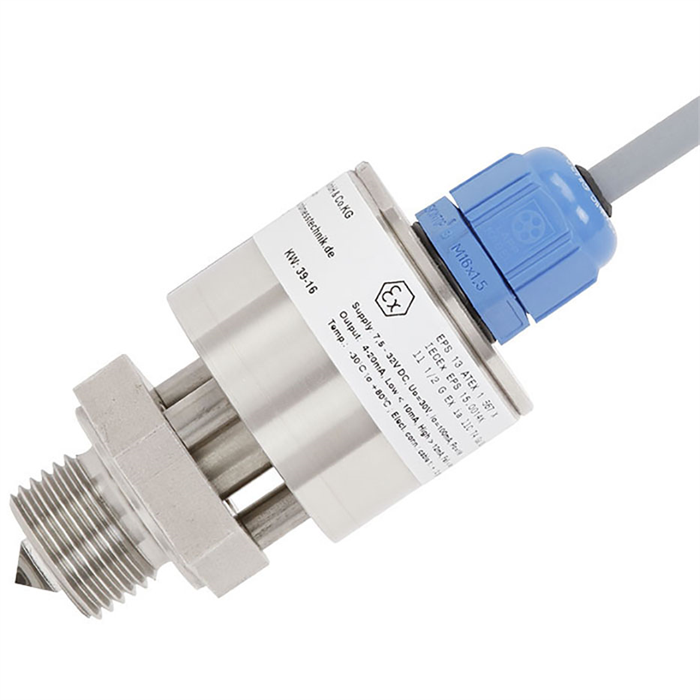

Model OLS-C51

Optoelectronic level switch

For industrial applications, intrinsic safety Ex i

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Machine tools
  • Hydraulics
  • Plant construction and machine building
  • Water technology
  • For liquids such as oils, water, distilled water, aqueous media

Special features

  • Application at medium temperatures up to +135 °C
  • Mounting position as required
  • Accuracy ±2 mm
  • Explosion-protected version Ex i


The model OLS-C51 optoelectronic level switch is used for monitoring the level of liquids. The optoelectronic sensor consists of an infrared LED and a light receptor.

The light from the LED is directed at a prism which forms the tip of the sensor. So long as the tip is not immersed in liquid, the light is reflected within the prism to the receiver.

When the liquid rises within the vessel and surrounds the tip, the light beam is refracted by the liquid, so that the receiver is no longer or only weakly reached by the light and reacts to this change by triggering a switching operation.

As an explosion-protected version, the model OLS-C51 level switch is designed for medium temperatures up to +135 °C in zone 0 and 1.

Optoelectronic level switch
  • Optoelectronic level switchOptoelectronic level switch
