Model TF41

Ambient temperature sensor

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Heat pumps
  • Combined heat and power plant
  • Heating, ventilation and air-conditioning
  • Refrigeration technology

Special features

  • Smallest housing design
  • Protected against dust and water jets, IP 65
  • UV-resistant
  • Clip-on sun protector
  • Temperature ranges from -40 … +100 °C

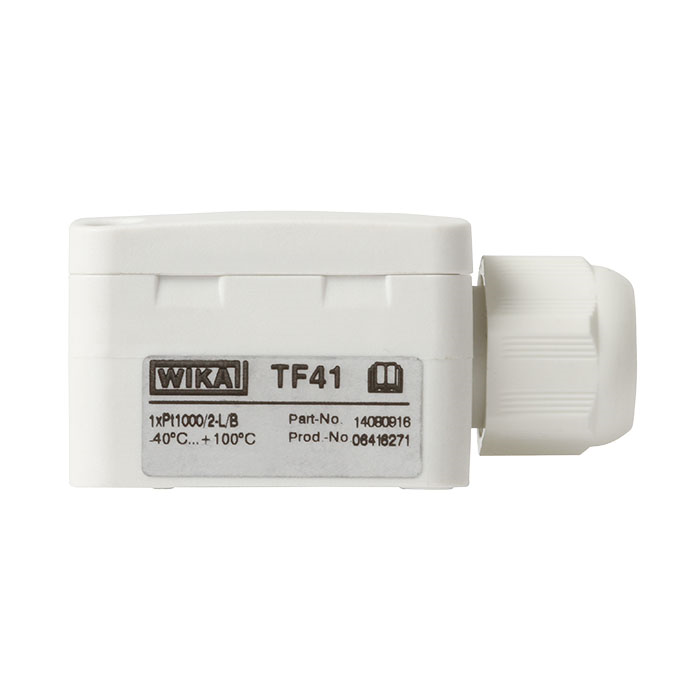

Model TF41 ambient temperature sensors are used for temperature measurement in external areas as well as in cold rooms and production and storage facilities. The extremely small housing even enables mounting in locations where there is very little space available.

The model TF41 ambient temperature sensors are delivered as standard with the measuring element integrated within the housing. For faster temperature measurement, the TF41 can alternatively be delivered with an external sensor shaft.

 To prevent erroneous measurements through strong radiation from sunlight, we offer a clip-on sun cover as an accessory. By selecting the appropriate measuring elements, the TF41 ambient temperature sensors are compatible with all commonly used control systems.

Standard version

Measuring element integrated within the housing

  • Standard versionWith sensor sleeveExternal sensor sleeve and sun protector
