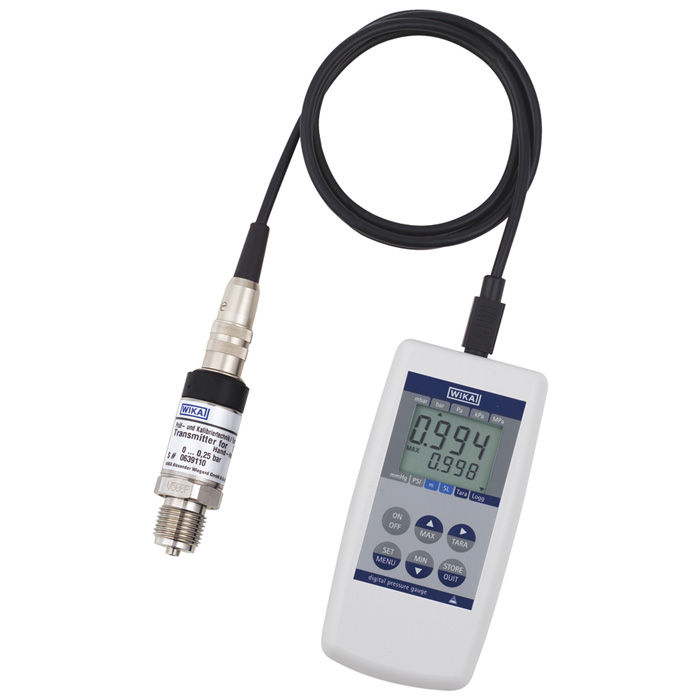

With external reference pressure sensor (CPT6200), 1- or 2-channel version
Extensive application possibilitiesFor the hand-held pressure indicator model CPH6200, external reference pressure sensors of model CPT6200 with measuring ranges of up to 1,000 bar (14,500 psi) are available. Therefore, it is particularly suitable as a test instrument for applications such as process technology, machine building, etc. The digital indicator automatically detects the measuring range of the connected pressure sensor and guarantees a highly accurate pressure measurement.
FunctionalityThe CPH6200 can be used for measuring both gauge and absolute pressure. Differential pressure measurement is possible with the 2-channel version CPH6200-S2, and two connected model CPT6200 reference pressure sensors. Pressure units selectable on the instrument are: bar, mbar, psi, Pa, kPa, MPa, mmHg or inHg.
An integrated data logger and various other functions such as Min., Max., Hold, Tare, zero point adjustment, alarm, power-off, peak value detection (1,000 measurements/s), average value filter, etc. ensure that the CPH6200 can be used for many different applications.
SoftwareIn addition to the GSoft data-logger evaluation software for the tabular and graphical representation of the logged data, WIKA-Cal calibration software for calibration tasks is also available. WIKA-Cal also offers, over and above PC-supported calibration, the management of the calibration and instrument data in an SQL database. A USB interface is available for the data transfer.
Model WIKA-Cal
Models CPP1000-M, CPP1000-L
Model CPP30
To 35 bar [500 psi]
Models CPP700-H, CPP1000-H
To 1,000 bar [14,500 psi]
Model CPT2500
With USB adapter and software
Model CPH62I0
Intrinsically safe version, 1- or 2-channel version
Model CPH6300
With integrated data logger, ingress protection IP67
