With integrated data logger, ingress protection IP67

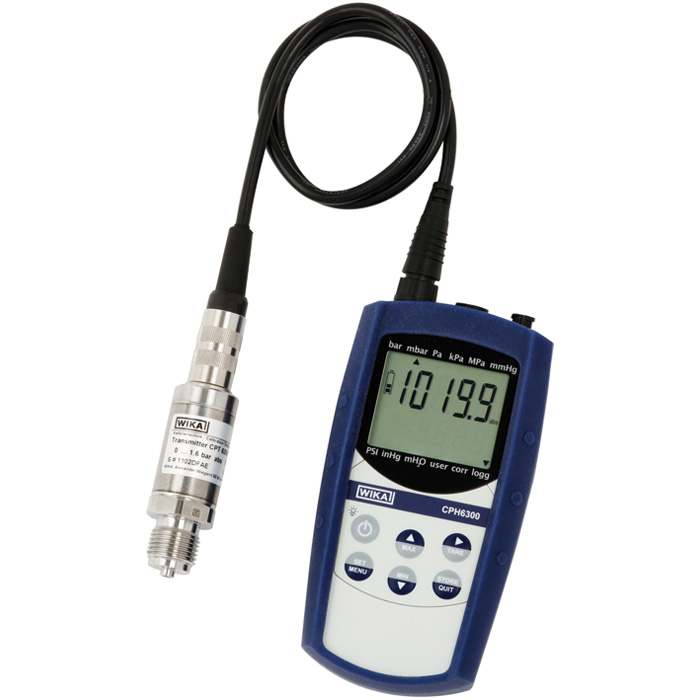

Extensive application possibilitiesFor the CPH6300 hand-held digital pressure measuring instrument, external reference pressure sensors of model CPT6200 with measuring ranges of up to 1,000 bar [14,500 psi] are available. The robust and waterproof design makes the CPH6300 ideal for use in adverse environments. The digital indicator automatically detects the measuring range of the connected pressure sensor and guarantees a highly accurate pressure measurement.
FunctionalityThe CPH6300 digital pressure measuring instrument can be used for measuring both gauge and absolute pressure. Differential pressure measurement is possible with the 2-channel version CPH6300-S2, and two connected model CPT6200 reference pressure sensors. Selectable pressure units here are bar, mbar, psi, Pa, kPa, MPa, mmHg, inHg, mH2O and one customer-specific unit.
An integrated data logger and various other functions such as Min., Max., Hold, Tare, zero point adjustment, alarm, power-off, peak value detection (1,000 measurements/s), average value filter, etc. ensure that the CPH6300 can be used for many different applications. The large, backlit display and also a long battery life complete the features of the CPH6300 digital pressure measuring instrument.
SoftwareIn addition to the GSoft data logger evaluation software for the tabular and graphical representation of the logged data, WIKA-Cal calibration software for calibration tasks is also available. WIKA-Cal also offers, over and above PC-supported calibration, the management of the calibration and instrument data in an SQL database. A USB interface is available for the data transfer.
Models CPP1000-M, CPP1000-L
Model CPP30
To 35 bar [500 psi]
Models CPP700-H, CPP1000-H
To 1,000 bar [14,500 psi]
Model WIKA-Cal
Model CPT2500
With USB adapter and software
Models CPH6200, CPT6200
With external reference pressure sensor (CPT6200), 1- or 2-channel version
Model CPH62I0
Intrinsically safe version, 1- or 2-channel version
Digital pressure measuring instrument, model CPH6300
